MJ6230 DIC Metallurgical Microscope
Description

MJ6230 DIC differential interference contrast microscope is suitable to observe many different kinds of object. It is equipped with
transmitted illuminator and reflected DIC system, infinity plan achromatic objectives with long working distance, wide-field eyepieces
and polarizer device. It provides clear and 3D image, beautiful sculpt, convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc.

Features:
1, Excellent UIS optical system can obtain excellent optical performance.
2, Compact and steady main frame body is embodiment for the shock resistance.
3, Modularization function design so that update system expediently and achieved polarization,DIC observation.
4, Ideal ergonomic design is adopted in this unit and have easier operation and wider space.

Standard Configuration
Model
MJ6230 DIC
Eyepiece
Wide field  WF10X(¦µ18mm)
Objective
Infinity plan achromatic objectives with long working distance (no cover glass)
PL L5X/0.12 Work distance:26.1 mm
PL L10X/0.25 Work distance:20.2 mm
PL L20X/0.40 Work distance:8.8 mm
PL L40X/0.60 (spring) Work distance:3.98 mm
DIC observation system
10XDIC  push-pull group
20XDIC  push-pull group
Eyepieces tube
Trinocular, Inclination of 30˚,Brinocular
Epi- illumination system
12V 50W, halogen lamp, adjustable brightness
Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer.
Focus system
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2¦Ìm.
Nosepiece
Quintuple (Backward ball bearing inner locating)
Stage
Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
Transmitted illumination
system
Abbe condenser  NA.1.25  Rack & pinion adjustable
Blue filter and Ground glass
Collector for halogen lamp illumination and integrated field diaphragm
12V 30W halogen lamp, adjustable brightness























Optional accessories
Name
Sort/Technique parameter
NO.
Eyepiece
Dividing eyepiece(field number:¦µ18mm)    0.10mm/Div
1121010
Objective
Infinity plan achromatic objectives with long working distance (no cover glass)

PL L50X/0.70 (spring) Work distance:3.68mm
2260150
PL L60X/0.75 (spring) Work distance:1.22 mm
2260160
PL L80X/0.80 (spring)  Work distance:1.25 mm
2260180
PL L100X/0.85 (spring and dry)  Work distance:0.40mm
2260111
Nosepiece
 Quintuple Backward ball bearing inner locating
032001
Filter
Green filter
115002
Yellow filter
115003
CCD adapter
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 Video output & USB output

DV-130 / 300 / 500 / 900 with USB output

DV-3 With video output(380/520 TV line)

Digital camera adapter
CANON(EF)  NIKON( F)
820001

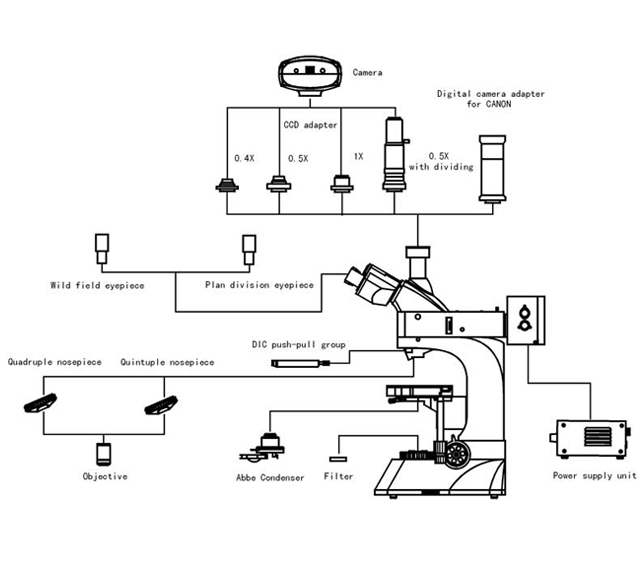

SYSTEM DIAGRAM:

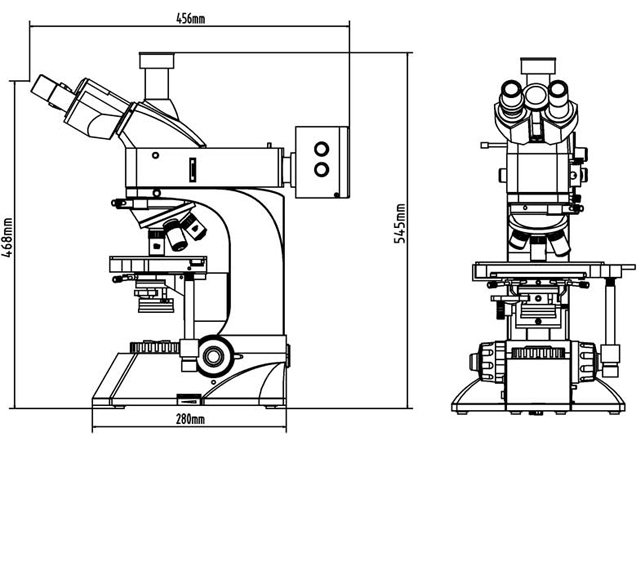

DIMENSION:
