| MD300 Digital Microscope |
 |
| Description |
|
| ¡¤ |

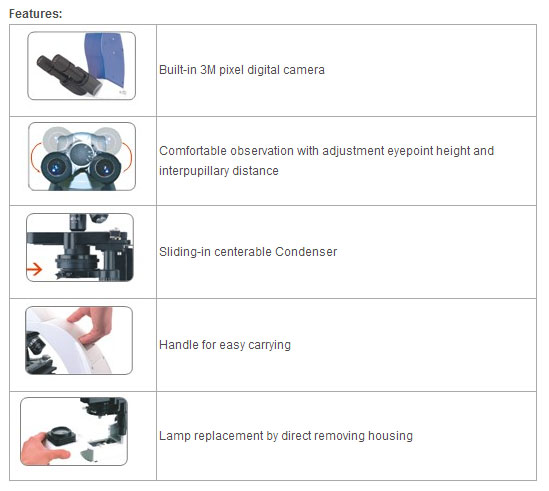

Megapixels digital systems, high-resolution real-time micro-image. |
| ¡¤ |
With high-sensitivity feature, suitable for equipped wide range of accessories such as dark field , phase contrast, Epi-fluorescence and so on. |
| ¡¤ |
Excellent optical performance with infinity optical system. |
|
|
|
MD300 |
|
Viewing Head |
Built-in 3M pixel digital camera with Software ScopeImaage 9.0
Siedentopf binocular head,30¡ãinclined,interpupillary distance
48-75mm |
¡ñ |
|
Eyepiece |
Wide Field Eyepiece WF10¡Á/ 18 |
¡ñ |
|
Extra wide filed eyepiece EW10¡Á/ 20 with diopter
adjustment |
¡ð |
|
Objective |
Infinitive Semi-plan
chromatic objectives |
4¡Á |
¡ñ |
|
10¡Á |
¡ñ |
|
40¡Á |
¡ñ |
|
100¡Á |
¡ñ |
|
Nosepiece |
Quadruple Nosepiece |
¡ñ |
|
Stage |
Double layers mechanical stage 140mm¡Á140mm/ 75mm¡Á50mm |
¡ñ |
|
Condenser |
Sliding-in centerable condenser NA1.25 |
¡ñ |
|
Focusing |
Coaxial coarse and fine adjustment, moving range 20mm |
¡ñ |
|
Illumination |
220V or 110V/ 6V/ 20W Halogen Lamp, Brightness Adjustable. |
¡ñ |
|
Phase
Contrast Kit |
|
¡ð |
|
Dark Field
Attachment |
|
¡ð |
|
Note: ¡ñStandard Outfit, ¡ðOptional | |
|
|
