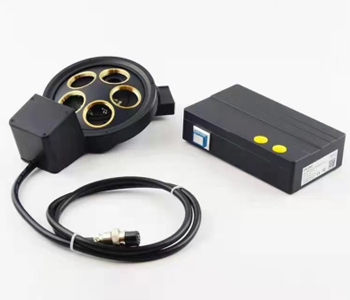

BW OPTICS’s wide variety of motorized and manual objective nosepiece assemblies can be integrated into new or existing custom optical systems. BW OPTICS’s current portfolio of objective nosepieces range from a single objective fixed magnification for OEM applications, to a six position motorized nosepiece for automated scanning applications requiring multiple objectives.
1, Service life: greater than or equal to 800,000 times
2, Provide SDK integrated development kit
3, Free technical support
|
Specifications |
|
|
Single screw hole multiple bidirectional positioning accuracy |
<0.003mm |
|
Multi-screw positioning axis coincidence accuracy |
<0.01mm |
|
Height difference after conversion of each screw hole end face |
<0.005mm |
|
Objective lens mounting thread selection |
M32/M26/M25/RMS |
|
Number of objective lens holes: |
6 holes / 5 holes / 4 holes |
|
